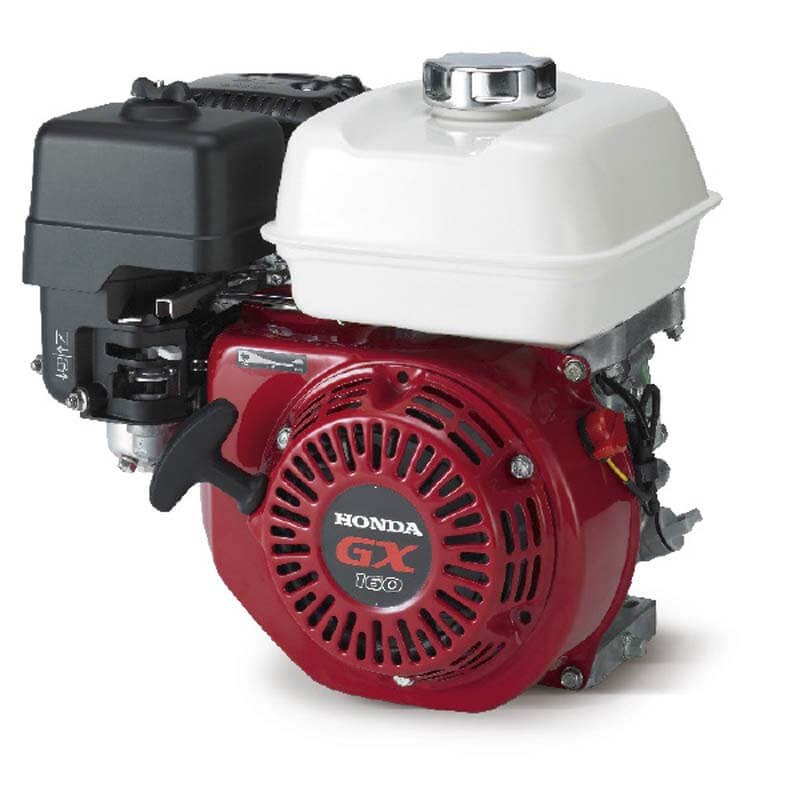

Honda GX160 Petrol Engine QTB

Engine type:

4-stroke single cylinder, OHV petrol engine, 25 inclined cylinder, Horizontal shaft

Cylinder sleeve type:

Cast iron sleeve

Bore x Stroke:

68 x 45 mm

Displacement:

163 cm?3;

Compression ratio:

9.0 : 1

Net power:

3.6 kW ( 4.8 HP ) / 3600 rpm

Cont rated power:

2.5 kW ( 3.4 HP ) / 3000 rpm, 2.9 kW ( 3.9 HP ) / 3600 rpm

Max. net torque:

10.3 Nm / 1.05 kgfm / 2500 rpm

Ignition System:

Transistorised

Starter:

Recoil (el. start optional)

Fuel tank capacity:

3.1 Liter

Fuel cons. at cont. rated power:

1.4 L/h - 3600 rpm

Engine oil capacity:

0.6 Liter

Dimensions (L x W x H):

312 x 362 x 346 mm

Dry weight:

15.1 kg
