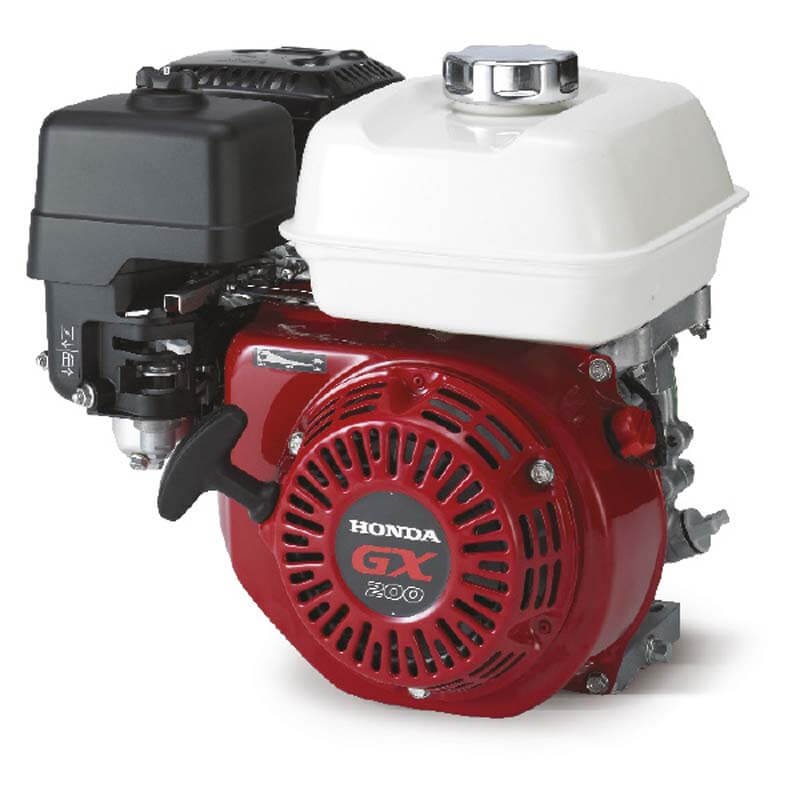

Honda GX200 Petrol Engine QTB

Engine type:

4-stroke single cylinder, OHV petrol engine, 25 inclined cylinder, Horizontal shaft

Cylinder sleeve type:

Cast iron sleeve

Bore x Stroke:

68 x 54 mm

Displacement:

196 cm?3;

Compression ratio:

8.5 : 1

Net power:

4.1 kW ( 5.5 HP ) / 3600 rpm

Cont rated power:

3.3 kW ( 4.4 HP ) / 3000 rpm, 3.7 kW ( 5.0 HP ) / 3600 rpm

Max. net torque:

12.4 Nm / 1.26 kgfm / 2500 rpm

Ignition System:

Transistorised

Starter:

Recoil (el. start optional)

Fuel tank capacity:

3.1 Liter

Fuel cons. at cont. rated power:

1.7 L/h - 3600 rpm

Engine oil capacity:

0.6 Liter

Dimensions (L x W x H):

321 x 376 x 346 mm

Dry weight:

16.1 kg
