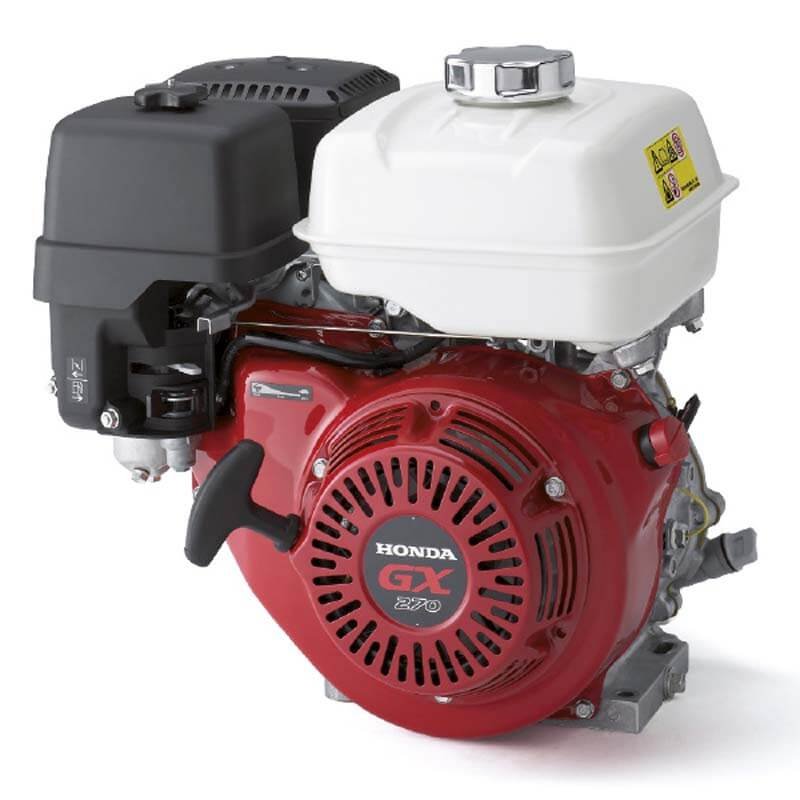

Honda GX270 Petrol Engine

Engine type:

4-stroke single cylinder, OHV petrol engine, 25 inclined cylinder, Horizontal shaft

Cylinder sleeve type:

Cast iron sleeve

Bore x Stroke:

77 x 58 mm

Displacement:

270 cm?3;

Compression ratio:

8.5 : 1

Net power:

6.3 kW ( 8.4 HP ) / 3600 rpm

Cont rated power:

4.6 kW ( 6.2 HP ) / 3000 rpm, 5.1 kW ( 6.8 HP ) / 3600 rpm

Max. net torque:

19.1 Nm / 1.94 kgfm / 2500 rpm

Ignition System:

Digital CDI with variable ignition timing

Starter:

Recoil (el. start optional)

Fuel tank capacity:

5.3 Liter

Fuel cons. at cont. rated power:

2.4 L/h - 3600 rpm

Engine oil capacity:

1.1 Liter

Dimensions (L x W x H):

381 x 428 x 422 mm

Dry weight:

25 kg
