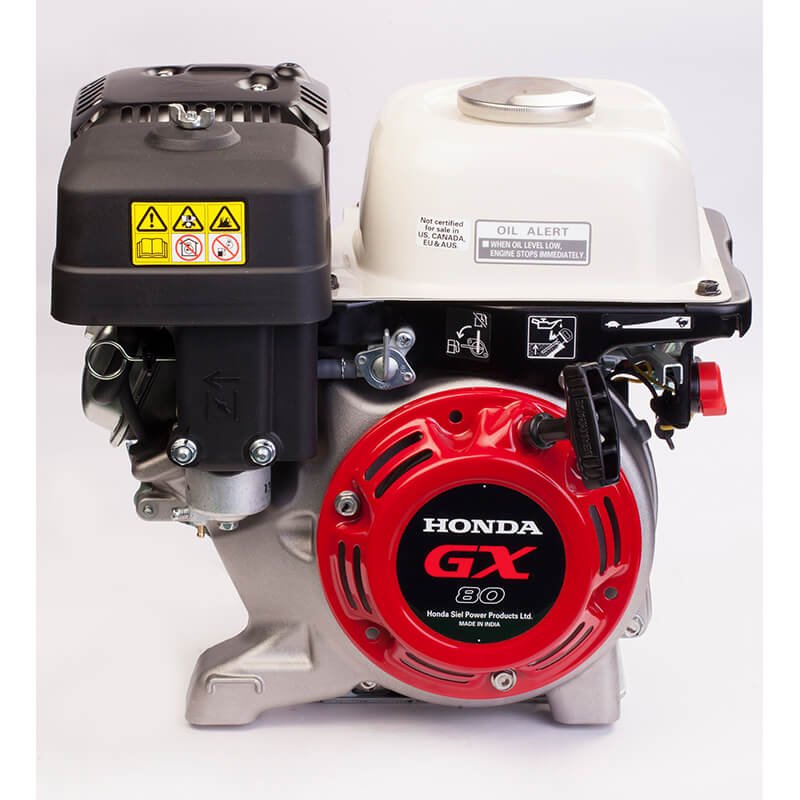

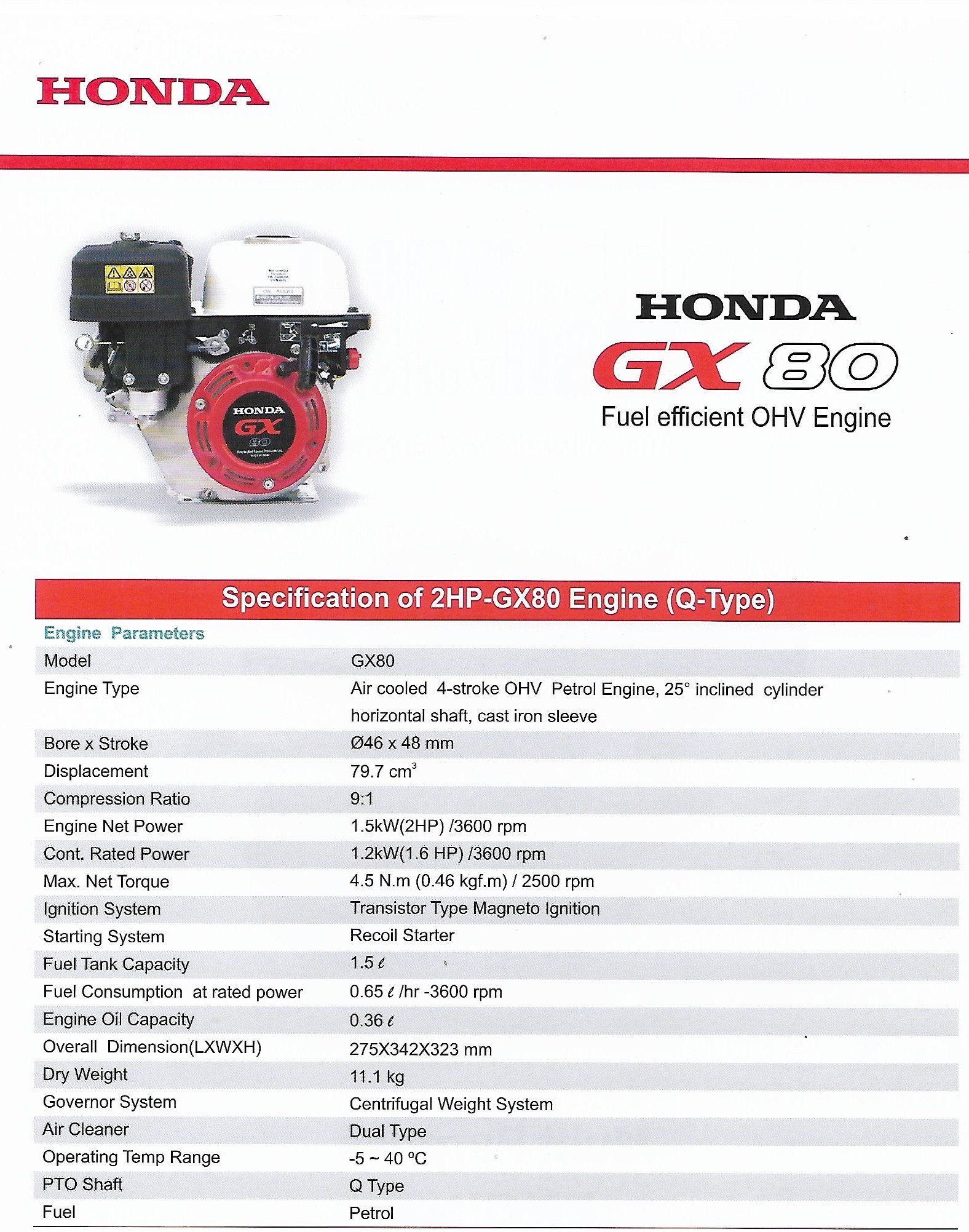

Honda GX80 Petrol Engine

Engine type:

4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft

Cylinder sleeve type:

Cast iron sleeve

Bore x Stroke:

46 x 48 mm

Displacement:

79.7 cm3;

Compression ratio:

9 : 1

Net power:

1.5 kW ( 2 HP ) / 3600 rpm

Cont rated power:

1.2 kW ( 1.6 HP ) / 3600 rpm

Max. net torque:

4.5 N.m / (0.46 kgf.m / 2500 rpm

Ignition System:

Transistor Type Magneto Ignition

Starter:

Recoil (el. start optional)

Fuel tank capacity:

1.5 L

Fuel cons. at cont. rated power:

0.6 L/h - 3600 rpm

Engine oil capacity:

0.36 L

Dimensions (L x W x H):

275 x 342 x 323 mm

Dry weight:

11.1 kg
